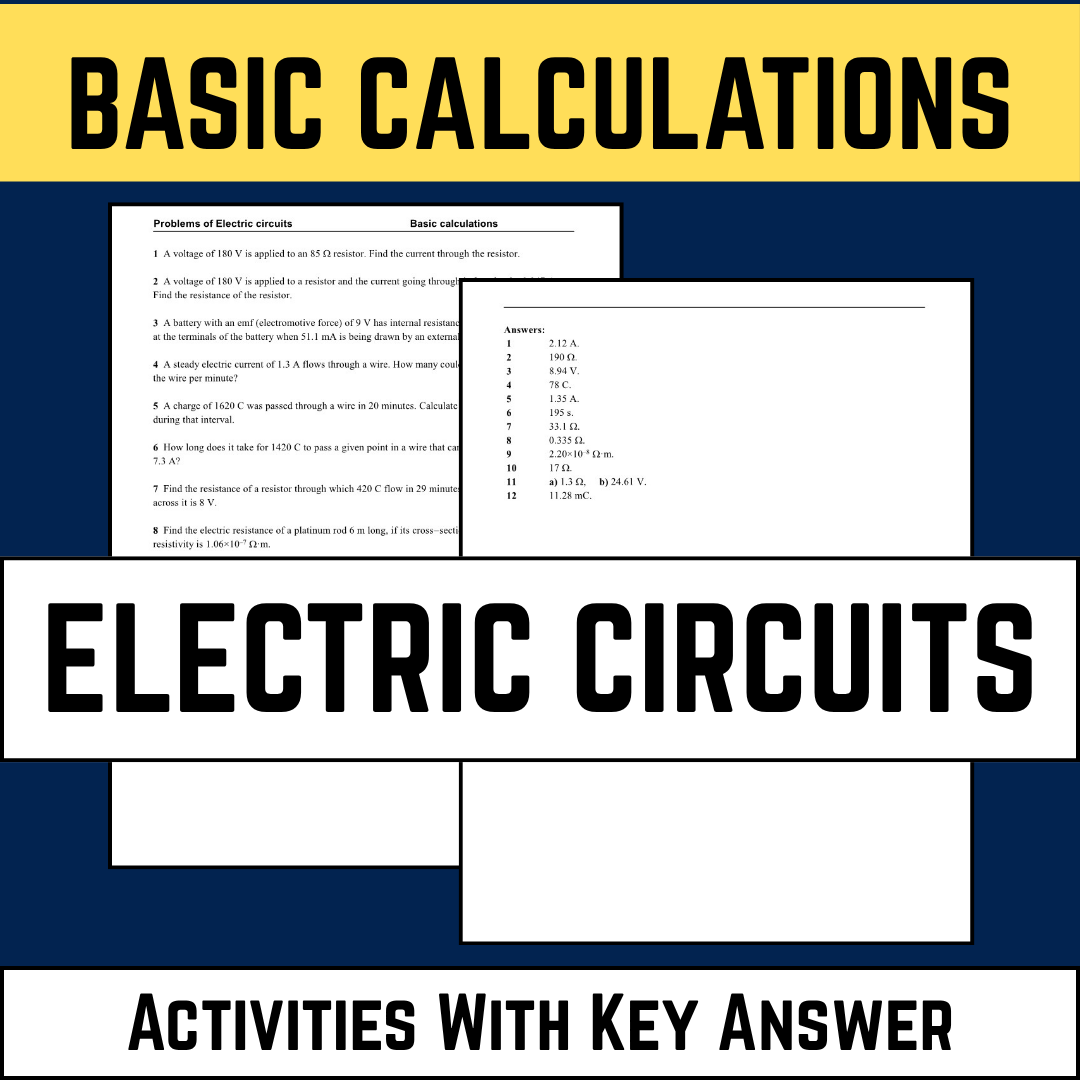

Master the Fundamentals of Electric Circuits!Are your physics or physical science students struggling to bridge the gap between circuit theory and mathematical application? This comprehensive 12-problem worksheet is designed to build confidence through clear, scaffolded practice.This resource focuses on the core calculations every electricity student needs to know, moving from simple Ohm’s Law applications to more complex concepts like internal resistance and resistivity.
What’s Covered in This Worksheet?Ohm’s Law: Mastering the relationship between Voltage ($V$), Current ($I$), and Resistance ($R$).Charge & Current: Calculating Coulombs ($Q$) and Amperes ($I$) over time.Resistivity: Determining resistance based on material properties, length, and cross-sectional area.Real-World Battery Physics: Calculating EMF and internal resistance ($r$).Capacitance: Intro-level charge calculations for capacitors.
Why You’ll Love It:Scaffolded Difficulty: Problems start with simple one-step calculations and progress to multi-step challenges (including unit conversions like mm² to m²).Versatile Use: Perfect for an in-class practice set, a rigorous homework assignment, or a sub-day activity.Clear Formatting: Plenty of white space for students to show their work and for easy grading.
